Road Maintenance Truck for Porous Asphalt Pavement
This product has been discontinued and removed from our shelves.
Road Maintenance Truck for Porous Asphalt Pavement
This product has been discontinued and removed from our shelves.
The road maintenance truck for porous asphalt pavement is used to clean and maintain the porous asphalt pavement for stable drainage and a long service life.
Main Parameters
| No | Parameter | Description |
| 1 | Model | HGY5250TPH |
| 2 | Chassis Brand | NORTH-BENZ |
| 3 | Chassis Model | ND1256B50J |
| 4 | Gross Vehicle Weight | 25000kg |
| 5 | Curb Weight | 9400kg |
| 6 | Passengers | 2 |
| 7 | Recovery Mode | High Pressure Water Cleaning + Cavitation Cleaning + Sewage Recycling |
| 8 | Cleaning Range | 2000mm |
| 9 | Oscillating length | 550mm |
| 10 | Cleaning Speed | 1.5～3km/h |
| 11 | Volume of Cleaning Water | 5.5m3 |
| 12 | Volume of Sewage Tank | 2.8m3 |
| 13 | Operation Area for One Water Filling | About 2000-6000㎡ |
| 14 | Discharge Method of Sewage | The sewage tank is lifted from the back for discharging. |
| 15 | Travelling Speed | 80km/h |
| 16 | Dimension (L×W×H) | 10370×2490×3650 (mm) |
Main Features
-
-
-
The cleaning system uses the combination of fan shaped spray and point spray, allowing the high-pressure water to clean every corner inside the pavement. Along with the cavity effect, the pavement interior is thoroughly cleaned without damage.
-
-
-
-
A water cycling system is equipped with multiple filtration systems for recycling the cleaning water.
-
- With a large operation area and long operational period, the recovery rate of cleaning water can reach 90%.
- No dust will be produced and no pollution will be caused during operation.
- With easy operation, most movements of the road maintenance truck for porous asphalt pavement are achieved using hydraulic control.

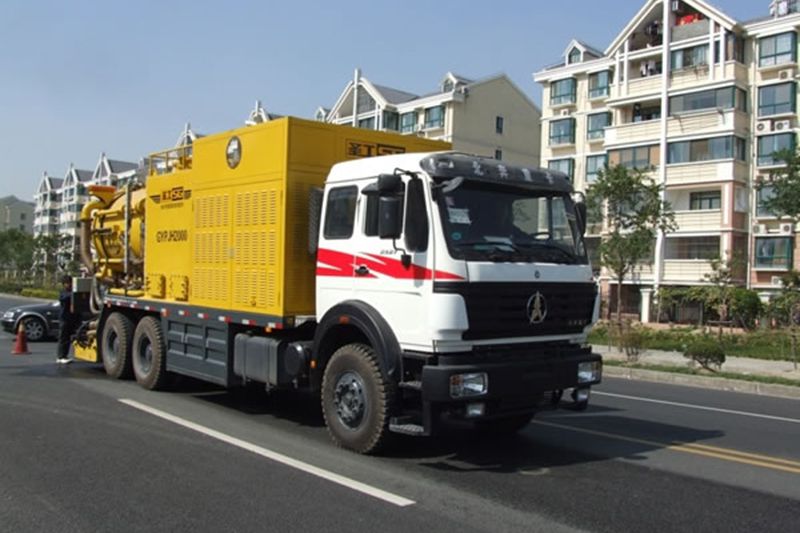

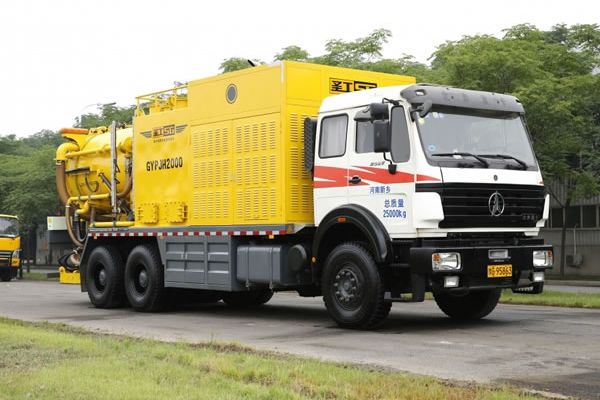

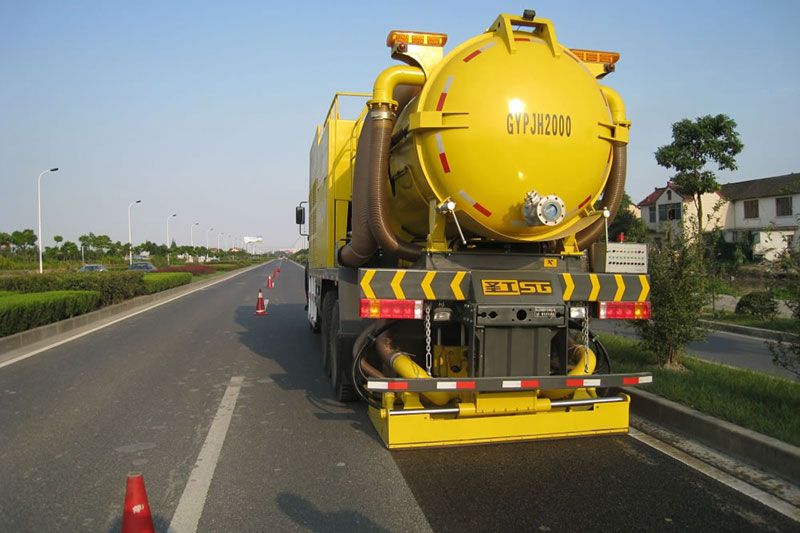

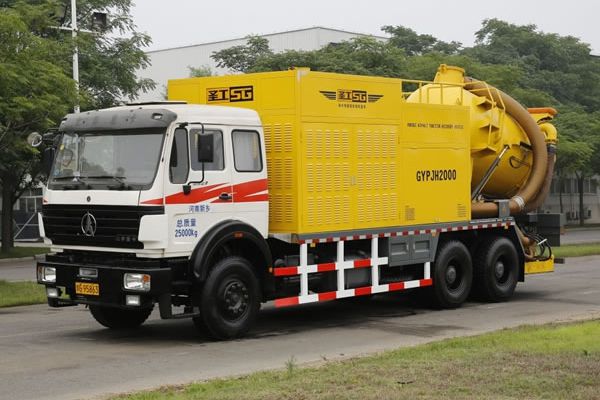

Examples
