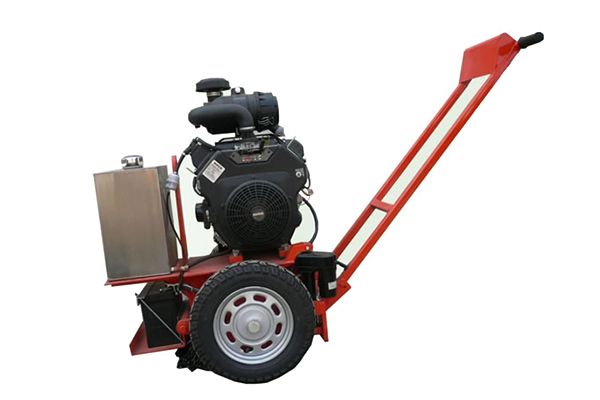

Road Groove Cutter

Road groove cutters are primarily used for groove cutting when handling cracks in asphalt and cement pavements. It utilizes its blades to quickly turn cracks into a uniform groove in order to form a new joint surface. Used with crack filling and sealing equipment, the road groove cutter widens and cleans cracks to prepare them for filling and sealing.

Request a Quote

Main Parameters

Model	GYKC300A
Engine Power	18.6kw
Fuel Tank Capacity	22L
Number of Blades	6
Cutting Width	12.5～50mm
Cutting Depth	0～30mm
Total Weight	248kg
Dimension	950 (L)mm×800(W)mm×1500(H)mm

Chassis (FAW Jie Fang Chassis)

High Traction

High load

Comfortable Drive

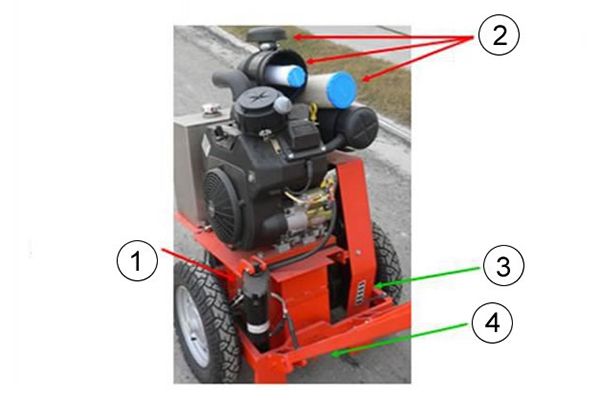

Main Features

2. Gasoline engine (25 horse power) purchased from the American company Kohler is used for normal operations under harsh environments, and a longer life span.

  Spiral Elevator

  Triple Air Filter

  Depth Indication

  Crack Indication
2. The groove width of road groove cutter can be adjusted by different cutting blade combinations.

  Iron Blade Plate

  Guard Chain

The Cutting depth ranges between 0～30mm.

New and old cutting blades can be used at the same time, resulting in a higher cutting blade efficiency.

The crack tracking indicator can ensure that the cutting blades accurately work along the random cracks.
