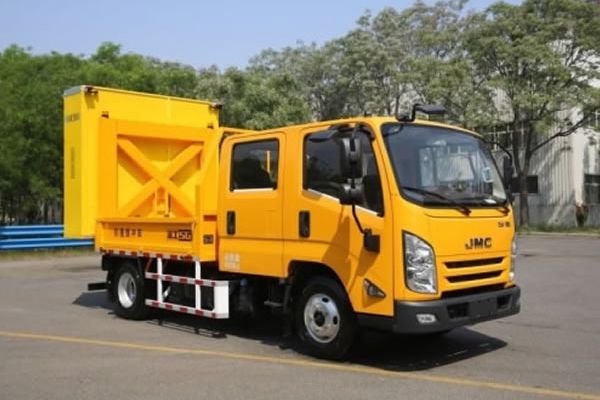

HGY5043TFZJX6 Impact Protection Vehicle

HGY5043TFZJX impact protection vehicle adopts STUER-EGGHE crash cushion for extended durability.

Request a Quote

Main Parameters

Model	HGY5043TFZJX6
Chassis	JX1043TSG26
Engine Power	95kW
Wheel Base	3360mm
Total Weight	4495kg
SE Crash Cushion	Complies with EN-1317 standards and NCHRP 350 TL-2 specifications.
Impact Rating	2000kg-70kph
Crash Cushion Size (L×W×H)	2080×2300×600mm
Warning Sign	Ultra-bright LED directional arrow board
Compartment	Open compartment
Dimension (L×W×H)	5980×2300×3160mm

Main Features

2. Crash Cushion (STUER-EGGHE)
  - Able to bear the impact of a 2-ton vehicle at 70kph.
  - With a lightweight housing and honeycomb crash-absorbing filling materials, the crash cushion can absorb the most impact energy.
  - Corners of the crash cushion adopt a unique curved design, offering full width impact protection and preventing corner crack and scratch injury.
2. Warning sign: LED directional arrow boards

  Ultra-bright LED light arrow board is visible over a long distance, giving motorists enough time to move away from the blocked lane or the construction area. The operator of the impact protection truck can switch the warning sign on the lighting board to “Pass Left”, “Pass Right” or “No Passing” according to the actual construction conditions.
2. Compartment

  Open compartment is designed for quick and easy loading of goods. It also has a cone stowage area for quick and efficient cones storage and placing.
2. Chassis

  The IPV is equipped with JMC four-seat chassis and 95kW engine.

Crash Cushion Test
