HGY5129TFZD6 Impact Protection Vehicle

HGY5129TFZD6 Impact Protection Vehicle
  • HGY5129TFZD6 Impact Protection Vehicle
  • HGY5129TFZD6 Impact Protection Vehicle

    • HGY5129TFZD6 Impact Protection Vehicle

    HGY5129TFZD6 impact protection vehicle is able to withstand the impact of a 2000kg car at 100kph because the crash cushion absorbs the most energy and prevents secondary collision.

    Request a Quote
    Main Parameters
    Model HGY5129TFZD6
    Chassis DONGFENG
    Power 154kW/209ps
    Emission Standard National Standard VI
    Warning Sign Ultra-bright LED directional arrow board
    Arrow Lamps 22
    Impact Rating 2000kg-100km/h
    Crash Cushion Size (L×W×H) 3100×2300×680 mm
    Crash Cushion Construction Impact-absorbing aluminum tube+ honeycomb aluminum alloy membrane
    Crash Cushion Power System Independent hydraulic power unit
    Crash Cushion Rotation Mechanism Hydraulic
    Total Weight 12450 kg
    Dimension (L×W×H) 8750×2500×3910（mm）
    Max. Travelling Speed 89km/h
    Main Features
      1. HGY5043TFZJX6 Impact Protection Vehicle
      2. Crash Cushion (STUER-EGGHE)
        • Able to bear the impact of a 2-ton vehicle at 70kph.
        • With a lightweight housing and honeycomb crash-absorbing filling materials, the crash cushion can absorb the most impact energy.
        • Corners of the crash cushion adopt a unique curved design, offering full width impact protection and preventing corner crack and scratch injury.
      1. HGY5043TFZJX6 Impact Protection Vehicle
        HGY5043TFZJX6 Impact Protection Vehicle
        HGY5043TFZJX6 Impact Protection Vehicle

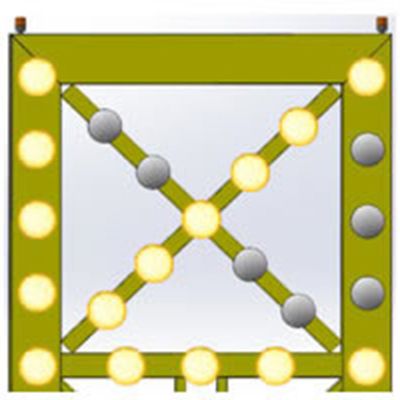

      2. Warning sign: LED directional arrow boards

        Ultra-bright LED light arrow board is visible over a long distance, giving motorists enough time to move away from the blocked lane or the construction area. The operator of the impact protection truck can switch the warning sign on the lighting board to “Pass Left”, “Pass Right” or “No Passing” according to the actual construction conditions.

      1. HGY5043TFZJX6 Impact Protection Vehicle
      2. Compartment

        Open compartment is designed for quick and easy loading of goods. It also has a cone stowage area for quick and efficient cones storage and placing.

      1. HGY5043TFZJX6 Impact Protection Vehicle
      2. Chassis

        The IPV is equipped with JMC four-seat chassis and 95kW engine.

    Crash Cushion Test
      1. HGY5043TFZJX6 Impact Protection Vehicle
        HGY5043TFZJX6 Impact Protection Vehicle
      2. Impact absorbing effect

        Test standard: NCHRP350 TL-2(70km/h)

      1. HGY5043TFZJX6 Impact Protection Vehicle
        HGY5043TFZJX6 Impact Protection Vehicle
      2. NCHRP350 TL-2 test report
