6000L Asphalt Distributor Truck

Road construction machinery for asphalt emulsion spraying

6000L Asphalt Distributor Truck
  • 6000L Asphalt Distributor Truck
  • 6000L Asphalt Distributor Truck
  • 6000L Asphalt Distributor Truck

    • 6000L Asphalt Distributor Truck

    Road construction machinery for asphalt emulsion spraying

    Gaoyuan is an asphalt distributor truck manufacturer and supplier. With a 6000 liters asphalt tank, this asphalt distributor truck is specialized equipment used to heat and spray various binders like emulsified asphalt and cutback asphalt in road construction and maintenance applications. This asphalt distributor is equipped with Sinotruk chassis and 220PS engine power, it can spray asphalt with maximum speed of 10 km/h, and the external asphalt tank is packed by stainless steel sheet to be corrosion resistant, durable, and deliver the asphalt with superior heat preservation.

    Request a Quote
    Main Parameters
    Product Name Asphalt distributor truck
    Model HGY5165GLQZ6
    Chassis Model ZZ1187K471DF1
    Chassis Manufacturer Sinotruk (Optional upon request)
    Chassis Series HOWO
    Chassis Engine WP4.6NQ220E61
    Chassis Engine Power 162 (220) kW (hp)
    Emission Standard China VI (Optional upon request)
    Approach/Departure Angle 19/11°
    Front Suspension/Rear Suspension 1330/2550 mm
    Wheel Base 4700 mm
    Total Weight 16000 kg
    Maximum Speed 89 km/h
    Asphalt Tank Volume 6000 L
    Spray Width 6000 mm
    Spray Volume 0.2-3 kg/㎡
    Spray Precision 1%
    Spray Medium Modified asphalt, hot asphalt, emulsified asphalt and other asphalt media
    Asphalt Heating Method Thermal oil heating (with automatic temperature control)
    Asphalt Heating Rate 12 ℃/h
    Dimension (L×W×H) 8580×2490×3200 mm
    Main Features
      1. 6000L Asphalt Distributor Truck

      2. Sinotruk HOWO's distinctive chassis provides an outstanding balance of strength, fuel efficiency, agility, and power with the support of its 220-horsepower engine, ensuring its main vehicle possesses immense power.

      1. 6000L Asphalt Distributor Truck

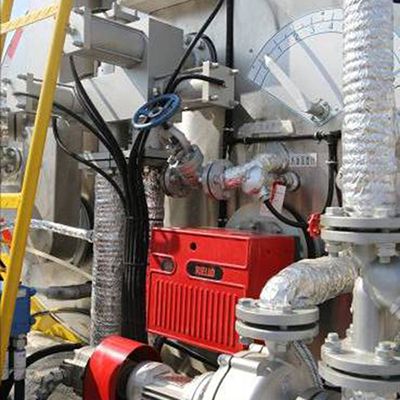

      2. The asphalt tank is outfitted with an imported diesel burner, providing superior combustion efficiency and swift heating ability. The system offers automatic ignition and a temperature control system for secure and stable operation.

      1. 6000L Asphalt Distributor Truck

      2. The spray bar boasts an innovative horizontal folding structure which allows it to be adjusted to different heights. The nozzles on the equipment all utilize high-precision technology, ensuring that the spray is evenly distributed and the spray effect from each nozzle is achieved every time.

      1. 6000L Asphalt Distributor Truck

      2. The asphalt pump utilizes a gear pump from a renowned manufacturer in China. It offers superior self-priming capabilities, a broad speed range, excellent sealing properties, and a stable output flow.

      1. 6000L Asphalt Distributor Truck

      2. Operating the distributor is more efficient and user-friendly, and the operator can conveniently control it from the cab or a rear platform, providing greater ease and flexibility.

    • The intelligent control system adopted by the distributor truck provides a high degree of automation to enable precise distribution and control. Furthermore, its flexibility allows for the adjustment of various construction parameters. Additionally, the system is unaffected by the speed; thus, it accurately controls the amount of spraying and materials measured.
    • The main vehicle engine of the power system utilizes a power take-off device to power the hydraulic system, offering a robust source of energy for the entire machine.
    • The main vehicle provides continuous and stable power, enabling it to start up smoothly without any sprays.
    • The asphalt pipeline utilizes an automatic control valve, allowing for a quick transition from one construction cycle to the next with just the push of a button. This ensures a high degree of automation and drastically reduces labor intensity.
    • The outer wall of the asphalt tank is encased with a stainless steel frosted plate for its anti-corrosive properties and endurance. The insulation of the tank body is of high quality, allowing for a temperature decrease of no more than 12℃/8 h (at normal temperature).
    • The engineering team has carried out a series of construction and improvement projects, which have resulted in reliable performance and simple operation and maintenance of the equipment.
