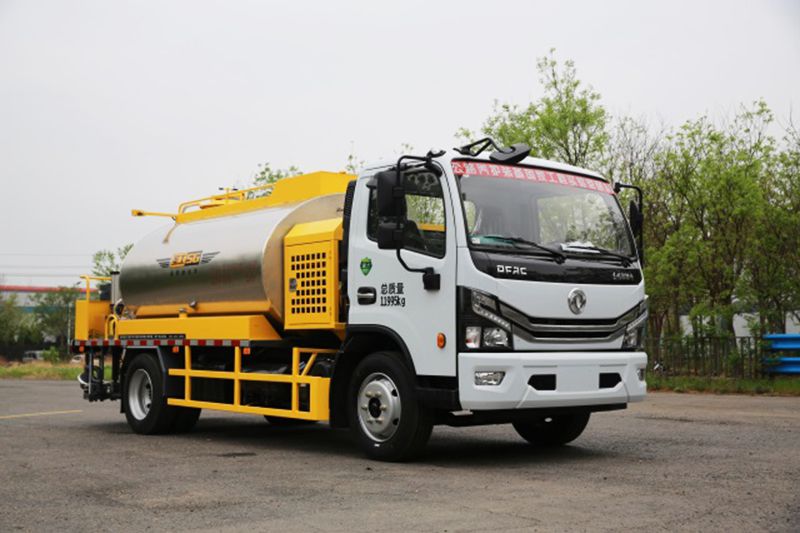

5000L Asphalt Distributor Truck with 5kW Auxiliary Engine

Road construction machinery for asphalt emulsion spraying

5000L Asphalt Distributor Truck with 5kW Auxiliary Engine
  • 5000L Asphalt Distributor Truck with 5kW Auxiliary Engine
  • 5000L Asphalt Distributor Truck with 5kW Auxiliary Engine
  • 5000L Asphalt Distributor Truck with 5kW Auxiliary Engine
  • 5000L Asphalt Distributor Truck with 5kW Auxiliary Engine
  • 5000L Asphalt Distributor Truck with 5kW Auxiliary Engine

    Road construction machinery for asphalt emulsion spraying

    As an intelligent construction vehicle, the automatic asphalt distributor is ideal for distributing a variety of asphalt mixtures including emulsified asphalt, diluted asphalt, hot asphalt, and high viscosity modified asphalt. These asphalt mixtures are used in constructing high-grade highway pavement and to spray the priming oil, waterproof layer, and bonding layer of the bottom layer.

    This asphalt distributor is fully automated and contains a 5000L asphalt tank. It is equipped with a 5kW generator that allows for independent heating of the system, with no interference to the power of the main vehicle. It heats the heat transfer oil for circulation heating and the burner for heating.

    Request a Quote
    Main Parameters
    Model HGY5121GLQD6
    Chassis Model EQ1125SJ8CDC
    Chassis Manufacturer Dongfeng Motor (Optional upon request)
    Chassis Engine Model YCY30165-60
    Chassis Engine Power 121 (165) kW (hp)
    Emission Standard Euro 6 (Optional upon request)
    Wheel Base 3800 mm
    Approach/Departure Angle 21/12°
    Front Suspension/Rear Suspension 1130/1970 mm
    Total Weight 11995 kg
    Maximum Speed 103 km/h
    Generator Power 5 kW
    Asphalt Tank Volume 5000 L
    Spray Width 4500 mm
    Spray Volume 0.2-3.0 kg/m2
    Spray Precision 1.5%
    Spray Medium Modified asphalt, hot asphalt, emulsified asphalt and other asphalt media
    Asphalt Heating Method Thermal oil heating (with automatic temperature control)
    Burner Power 20×104 kcal/h
    Asphalt Heating Rate 12 ℃/h
    Dimension (L×W×H) 6900×2165×2660 mm
    Main Features
    • Dongfeng Automobile's chassis has powerful load-bearing capabilities, great fuel efficiency, smooth operation, and plenty of power for optimal performance.
    • The intelligent control system is highly automated, providing precise calculations of spraying amounts for construction.
    • The industrial controller of this distributor is designed to provide high-level protection and reliability in controlling operations.
    • The truck's operation is streamlined for easier use, with the option of completing tasks from either the cab or the rear platform for added convenience. With just one person, spraying tasks can be achieved in the cab, while any construction needed can be completed from the rear platform.
    • The automatic control valve ensures a smooth transition between asphalt circulation spraying, reducing the manual labor required and resulting in increased work efficiency and improved asphalt spreading quality.
    • The exterior wall of the asphalt tank is constructed from stainless steel frosted plates for superior resistance to corrosion and durability. The tank body provides excellent insulation, resulting in a temperature drop of no more than 12 ℃/8 h (at normal temperature).
    • The tank body is equipped with an imported diesel burner known for its high combustion efficiency and rapid heating speed. Additionally, for reliable operation, an automated ignition and temperature control system is installed.
    • The spray bar features a horizontal folding design with the ability to adjust the height.
    • This asphalt distributor is equipped with high-precision nozzles, capable of independent adjustment to ensure a consistent spray effect throughout use.
    • The asphalt pump and pipeline are heated and insulated using heat transfer oil. There is no need for cleaning after the construction.
    • The asphalt pump is outfitted with a well-known brand gear pump made in China that offers superior self-priming capabilities, a broad operational speed range, tremendous sealing performance and a consistent flow rate.
    • The main vehicle's hydraulic system provides the power necessary to meet the asphalt pump's requirements for spraying. This combination of electrical control and hydraulic system enables the vehicle to spray asphalt from a position of 0 rpm.
    • After numerous engineering improvements, the distributor truck boasts reliable performance, easy operation and maintenance.
