8000L Asphalt Distributor Truck

Road construction machinery for asphalt emulsion spraying

8000L Asphalt Distributor Truck
  • 8000L Asphalt Distributor Truck
  • 8000L Asphalt Distributor Truck
  • 8000L Asphalt Distributor Truck

    Road construction machinery for asphalt emulsion spraying

    Gaoyuan is a leading asphalt distributor truck manufacturer with over 15 years of experience in manufacturing road maintenance equipment. Our asphalt distributor truck with 8000 liters asphalt tank is designed for large scale road construction jobs. It has high engine power of 220PS, the asphalt is heated by thermal oil with automatic temperature control. The asphalt distributor can spray heated asphalt with manual or automatic modes. For automatic control, the operator just needs to set the spray volume and the truck can open the speed detector automatically. Then, the automatic control system will adjust the rotating speed of the asphalt pump according to the vehicle speed, and it makes the asphalt pavement evenly.

    Request a Quote
    Main Technical Parameters
    Item Parameters
    Model HGY5163GLQ
    Internal Model GYLS0860C
    Chassis Model ZZ1187K471DF1
    Chassis Manufacturer Sinotruk
    Chassis Series HOWO (Optional upon request)
    Chassis Engine Model WP4.6NQ220E61
    Chassis Engine Power 162 (220) kW (hp)
    Emission Standard Euro 6 (Optional upon request)
    Wheel Base 4700 mm
    Total Weight 18000 kg
    Auxiliary Engine Model 4TE35A-39A
    Auxiliary Engine Model 26 (35) kW (hp)
    Asphalt Tank Volume 8000 L
    Spray Width 6000 mm
    Spray Volume 0.2-3 kg/㎡
    Spray Precision 1%
    Dimension (L×W×H) 8580×2490×3360 mm
    Main Features
      1. 8000L Asphalt Distributor Truck
      2. The Sinotruk HOWO chassis offers numerous benefits for vehicle users, including a large carrying capacity, a high engine power output, low fuel consumption and exhaust output, simple operation, and reliable braking.

      1. 8000L Asphalt Distributor Truck

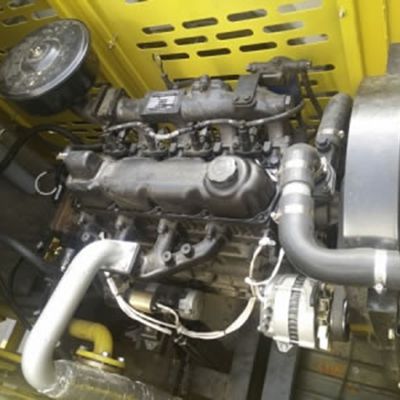

      2. Equipped with an auxiliary engine for heating the asphalt during transport. By thanks to this, the construction time is shorter, and the work efficiency can be increased.

      1. 8000L Asphalt Distributor Truck

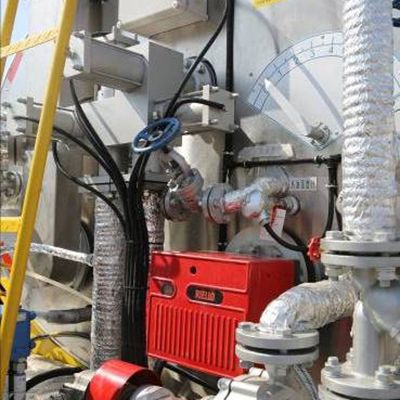

      2. The asphalt tank is equipped with diesel burner to achieve high combustion efficiency, high heat rate, as well as safe and stable operation.

      1. 8000L Asphalt Distributor Truck
      2. The high precision spray nozzle equipped can guarantee uniform spray and superior spraying effect.

      1. 8000L Asphalt Distributor Truck
      2. The asphalt pump adopts the gear pump purchased from Viking for good performance of self-priming, wide range of rotation speed, good sealing performance and stable flow rate.

      1. 8000L Asphalt Distributor Truck
      2. The asphalt distributor truck can be operated in the operator cab or on the rear operation platform.

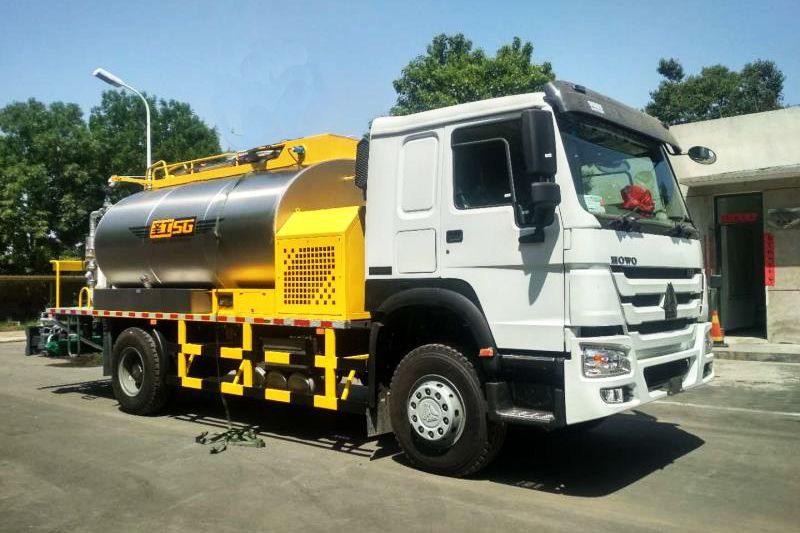

    • The Sinotruk HOWO chassis offers numerous benefits for vehicle users, including a large carrying capacity, a high engine power output, low fuel consumption and exhaust output, simple operation, and reliable braking.

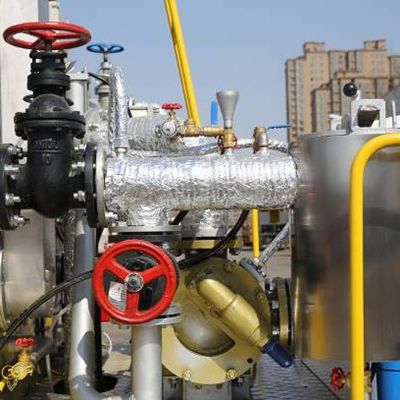

    • This asphalt valve group structure is designed to provide a high degree of automation, reducing labor intensity for enhanced efficiency.
    • An insulation layer that is both corrosion-resistant and long-lasting ensures that the temperature drop will not exceed 12℃/8h under normal conditions.

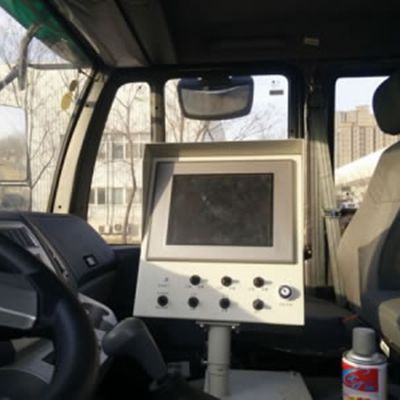

    • The control system has been designed to offer convenience to users, both remotely and on-site. Through this system, users can operate more effectively and efficiently.
    • The electrical control and hydraulic system come together perfectly to ensure zero initial spray.
    • We leverage our extensive engineering construction experience to improve equipment performance and usability. Our modifications make machines more reliable and easier to operate and maintain.
