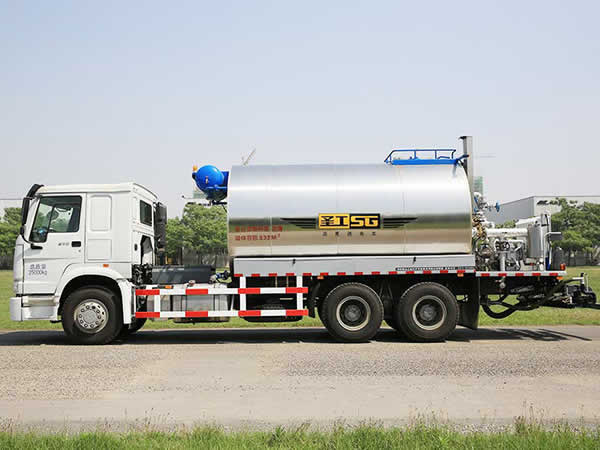

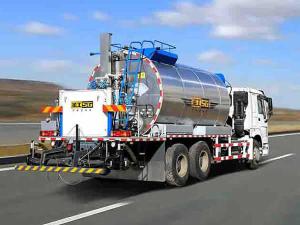

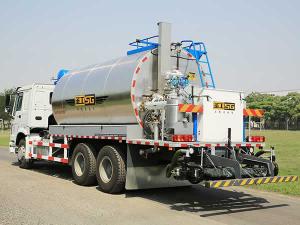

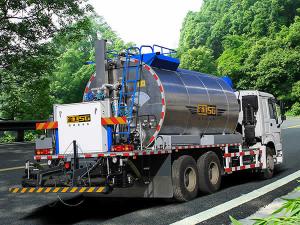

Asphalt Distributor Truck HGY5256GLQ

Bitumen Pressure Distributor, Asphalt Trailer, Equipment for Road Construction, Asphalt Paving Solution

Gaoyuan is a China road construction machinery manufacturer incepted in 2004. By virtue of years' engineering experience and comprehensive research we have conducted on the current road condition, we have developed a series of road maintenance machinery, one of which is HGY5256GLQ. This equipment is an affordable and easily-operated bitumen truck that deals with a complete range of emulsified bitumen, diluted asphalt, hot asphalt, modified bitumen, and adhesives.

Technical Parameters
Model: HGY5256GLQ
Chassis model: M3000/SX1250MB4 from Shaanxi Automobile Group
Emission standards: Euro V
Spray width: 4500mm
Spray volume: 0.2~3.0kg/m²
Tank volume: 13000L
Asphalt heating device: imported diesel burner
Material: modified bitumen, hot asphalt, rubberized asphalt, and emulsified asphalt
Total weight: 25000kg
Dimension: 10735×2496×3820mm

Main Features
1. The special chassis we adopt features powerful carrying capacity, low oil consumption, and easy operation
2. HGY5256GLQ bitumen spraying machine employs a hydraulic servo system, which has provided a powerful guarantee for the truck's performance
3. The intelligent control system joins with a special controller to detect the condition of the truck automatically and precisely control the asphalt spraying volume. The bitumen sprayer comes with both annual and automatic operation system. Only one driver is needed to accomplish the distribution job
4. Pipes for carrying bitumen are coated with heat transfer oil to ensure that all of the machine parts run smoothly and don't have to be cleaned
5. The 3 anti-collision foldable sprinkler heads are of high precision and uniformity
6. Different spray nozzles are controlled independently and can work jointly with each other freely
7. The large-capacity tank of the asphalt sprayer is designed to preserve heat inner the cylinder and can rise its temperature in a short time. Sheets are packed outside the tank surface to protect it against corrosion and extent its life.
8. The burner imported from Italy accompanied with automatic temperature control system ensures high combustion efficiency and stable performance
9. Asphalt pump from JOHNSON (Belgium) meets various working conditions
