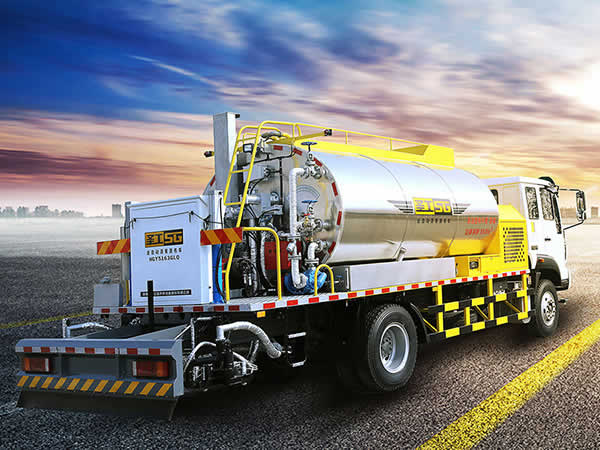

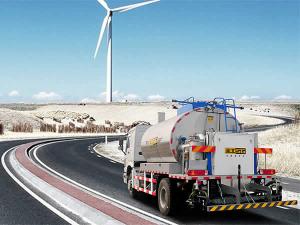

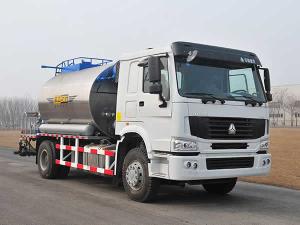

HGY5163GLQ is a kind of road maintenance equipment Gaoyuan has developed on the basis of our rich engineering experience and the research on the current road industry. This bitumen sprayer is capable of spraying emulsified bitumen, diluted asphalt, hot asphalt, modified bitumen, and adhesives on broken roads for repairing and maintenance purposes.
Technical Parameters
Model: HGY5163GLQ
Chassis model: M5G/ZZ1161H501GE1 from CNHTC
Emission standards: Euro V
Spray width: 4500mm
Spray volume: 0.2~3.0kg/㎡
Tank volume: 8000L
Asphalt heating device: imported diesel burner
Material: modified bitumen, hot asphalt, and emulsified asphalt
Spraying accuracy: ±1.5%
Total weight: 16000kg
Dimension: 8970×2496×3350mm (L×W×H)
Main Features
1. The special chassis we adopt features powerful carrying capacity, low oil consumption, and easy operation
2. Hydraulic servo system featuring stable performance and strong driving force is employed
3. The bitumen spraying machine employs an intelligent control system which joins with a special controller to detect the condition of the truck and precisely control the spraying volume. It comes with both annual and automatic operation system. Only one driver is needed to accomplish the asphalt distribution job
4. Pipes for carrying bitumen are coated with heat transfer oil to ensure that all of the machine parts run smoothly and don't have to be cleaned
5. The 3 anti-collision foldable sprinkler heads are of high precision and uniformity
6. Different spray nozzles are controlled independently and can work jointly with each other freely
7. The large-capacity tank of the road repairing machienry is designed to preserve heat inner the cylinder and can rise its temperature in a short time. Sheets are packed outside the tank surface to protect it against corrosion and extent its life.
8. The imported burner equipped with automatic temperature control system ensures high combustion efficiency and stable performance
9. The pump for high-viscosity asphalt meets various working conditions
10. Hand held spray gun is available for dealing with dead angles and some special purposes
