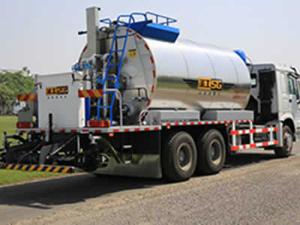

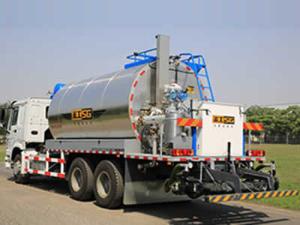

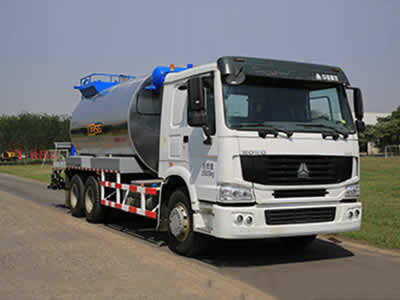

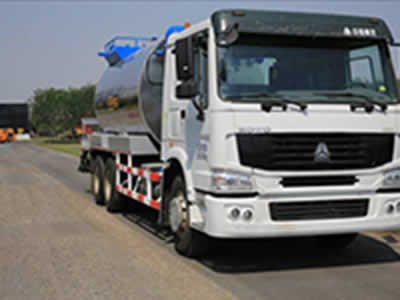

13m³ Asphalt Distributor Truck

Brief Introduction
HGY5255GLQ automatic asphalt distributor with Euro IV HOWO chassis is a kind of intelligent hi-tech product specialized in spraying emulsified asphalt, diluted asphalt, hot asphalt, heavy-duty asphalt and high viscous modified asphalt and so on. On the basis of introduced advanced technologies both domestic and abroad, this easy-operated distributor adds some humanized designs that ensure technical content of construction quality and improve construction conditions and environment. Its reasonable designs guarantee the asphalt spray uniformity. Industrial computer control is stable and reliable. The technical perfo rmance of overall machine has attained the advanced world level. This distributor has been improved and perfected in the construction by our construction department, which adapts to any kind of working conditions.

Main technical parameters
No. Item Unit Parameters Remarks
1 Product Name - Automatic Asphalt Distributor
2 Product Model - HGY5255GLQ
3 Internal Model - GYLS1360A
4 Chassis Model - ZZ1257M4647D1
5 Chassis Trademarks - SINOTRUK
6 Chassis Name - HOWO
7 Engine Model - D10.27-40
8 Engine Power kW(hp) 198(270)
9 Emission standard - EURO Ⅳ
10 Wheelbase mm 4600
11 Total weight kg 25000
12 Vehicle power - Engine PTO
13 Asphalt tank volume L 13000
14 Spray width mm 6000
15 Spray volume kg/m2 0.2-3
16 Spray precision - 1.50%
17 Spray media - modified asphalt, hot asphalt, emulsified
18 Asphalt heating mode - Imported diesel oil
19 Asphalt heating speed ℃/h 12
20 Overall dimensions mm 10735×2496×3820 L×W×H

Operation principle

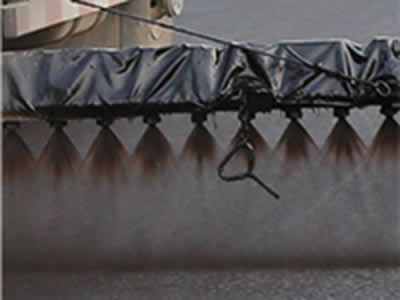

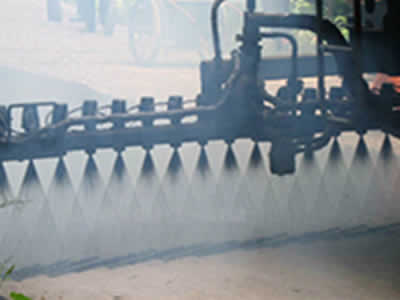

The operating principle of asphalt distributor is to pump the hot asphalt from asphalt storage pool into asphalt tank through asphalt pump; Transport it to construction site and heats the asphalt up to working temperature by heating system; Open asphalt pump and spraying valve by operating electrical apparatus control system; According to three overlapping spraying effect to spray the hot asphalt on pavement on the basis of measured distributing amount and pressure. The residual asphalt in pipeline will be transported into asphalt tank after finishing the work.

Construction technology introduction
Asphalt distributing is used special asphalt distributor to spray hot asphalt on pavement on the basis of measured distributing amount and pressure. It is mainly used deal with the construction of upper and lower seal coat, prime layer, asphalt surfacing, asphalt penetration surface, fog seal layer and so on.

1. Main Performance
A. It adopts Euro IV Sino-truk HOWO chassis, which has advantages of large bearing capacity, high power, low fuel consumption and emission, easy operation and reliable breaking, equipped with 198kw(270hp)engine power.

B. Good anticorrosive and durable insulation layer makes sure the temperature drop no more than 12℃/8h (Under normal temperature)

C. The tank adopts imported diesel burner, high combustion efficiency and high heating efficiency, automatic ignition and automatic temperature control system, operation security and stability.

D. Power supply system adopts engine PTO, stable operation.)

E. It ensures spray at the very first starting point.

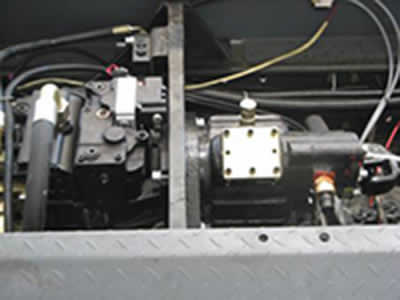

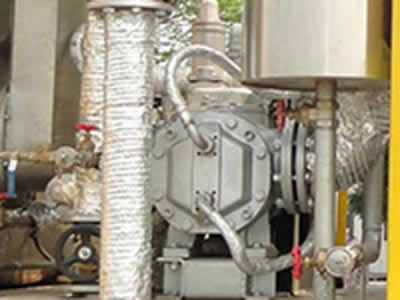

F. It adopts JOHNSON asphalt pump and JOHNSON heat oil pump,

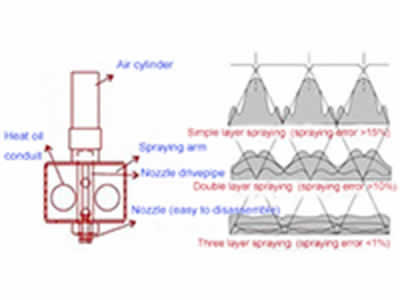

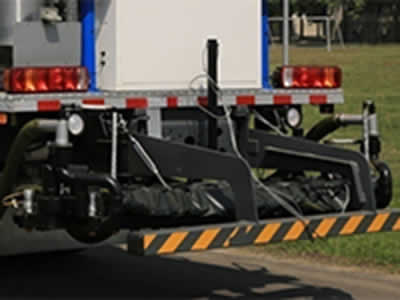

G. Spray width is controlled by multiple air cylinders; each air cylinder can be adjusted freely and controlled independently.

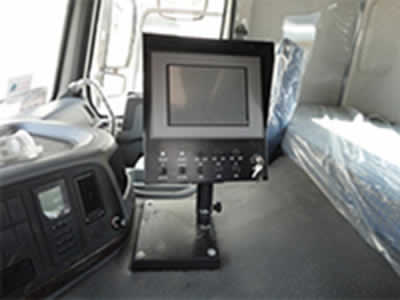

H. Control system is equipped with two set independent systems of manual and automatic so that to make sure the machine can work at any time. The configured radar and encoder measure the precise vehicle speed and pump speed separately in order to control the spraying amount in construction. The cab is equipped with construction monitoring device and automatic operating board.

I. External power can realize auto circulated heating without main engine (patent no. ZL03241904.X). This patent will reduce the engine wear, prolong the service life of main engine and save energy (save about 10t of diesel per year). It is likely to make auto circulated heating by main engine without external power.)

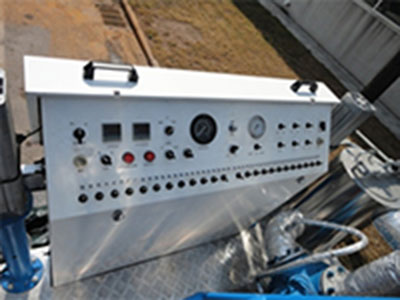

J. Humanized design of control system could not only control remotely, but also operate on site, which makes the operation more convenient.
