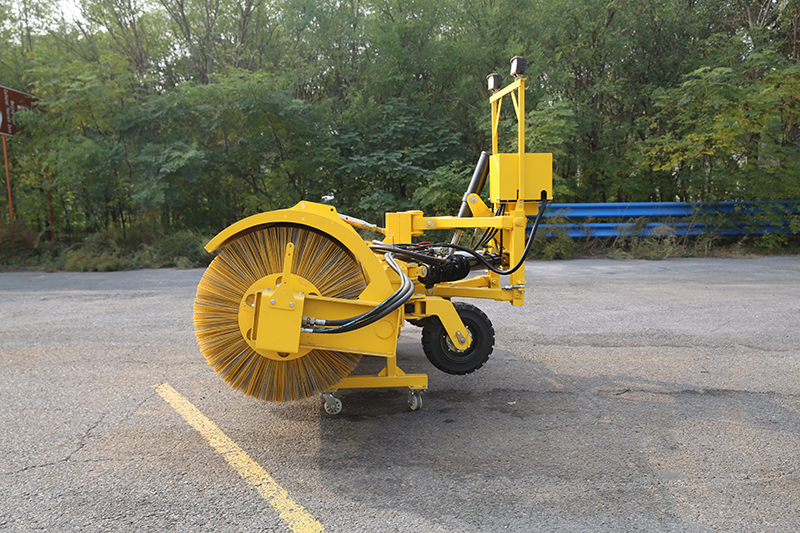

The snow broom truck is built to quickly and efficiently sweep away residual snow left behind by snow plows or perform independent snow removal on highways, city streets, and scenic areas.

With a segmental snow brush, hydraulic power unit, and user-friendly control system, you can clear snow effectively while maintaining smooth and safe roads. Whether you need to follow up after a snowplow or handle full snow removal, this truck provides a reliable and efficient solution.

Request a Quote

Main Parameters

Model	GYSXS3200	GYSXS3600
Working Width	3200 mm	3600 mm
Maximum Operating Speed	30 km/h	30 km/h
Left/Right Deflection Angle	±30°	±30°
Automatic Leveling Angle	±5°	±5°
Snow Brush Diameter	800 mm	800 mm
Snow Brush Material	PP + Steel Wire	PP + Steel Wire
Overall Dimensions (L×W×H)	3700 × 1920 × 1720 mm	4100 × 1920 × 1720 mm

Main Features

2. Snow Brushes:
  The snow brush consists of multiple overlapping brush discs, separated by spacers for durability. It is driven by dual motors on both sides for powerful sweeping. A snow guard and deflector prevent snow from obstructing the driver's view during operation. The brush automatically adjusts to road slopes for consistent performance.
2. Adjustable Rod:
  The adjustable rod handle allows precise control over the brush’s ground contact, ensuring effective snow removal while extending the brush's lifespan. After each use, removing accumulated snow and applying lubricant helps prevent rust.
2. Main Frame:
  The sturdy main frame supports the snow brush, with connections for support wheels, auxiliary wheels, and linkage arms for added stability.
2. Mounting Bracket:
  Designed to securely attach the snow broom to the vehicle’s front mounting plate and support arms, ensuring easy installation.
2. Hydraulic Power Unit:
  Equipped with a hydraulic power system protected by a durable cover, it operates efficiently once connected to the vehicle's battery, powering the hydraulic cylinders for smooth movement.
2. Support Wheels:
  Two wear-resistant solid rubber wheels provide stable ground support, helping to control the brush depth and improve its lifespan.
2. Support Wheels:
  Two wear-resistant solid rubber wheels provide stable ground support, helping to control the brush depth and improve its lifespan.
