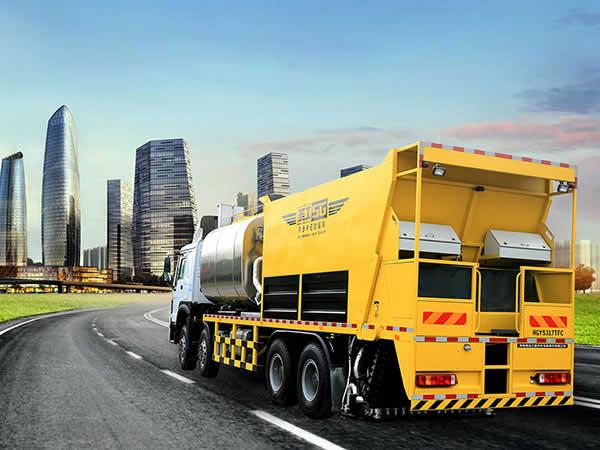

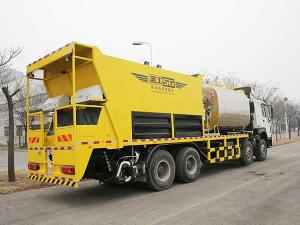

HGY5317TFC Chip Spreader with Asphalt Binder (For Chip Seal Surface Treatment)

Highway Maintenance Vehicle, Tack Truck, Pavement Construction Machinery, Bituminous Surface Treatment Equipment

HGY5317TFC chip spreader with asphalt binder is specially designed for asphalt mixing and spreading purposes in road and bridge maintenance projects. Developed from KT0608 and KT0610, this new equipment has something that the previous models fail to offer: it is endowed with stronger processing capability for the tank volume is increased to 8m³ and the volume of hopper grows to 14m³. The bitumen spreading machine is capable of spraying roughly aggregate of 8㎡ without lifting the hopper, which allows the equipment to work in low-height conditions.

HGY5317TFC chip spreading machinery drives stably, sprays material uniformly, and is affordable. A powerful mixing device is available to ensure the rubberized asphalt is not easy to get precipitated or segregated.

Technical Parameters
Model: HGY5317TFC
Chassis model: HOMO ZZ3317N4667E1 from CNHTC
Emission standards: Euro V
Chassis motor power: 276kW/380hp
Asphalt spray volume: 0.2-3.0kg/㎡
Aggregate spray volume: 2-22L/㎡
Asphalt heating speed: 20℃/h
Optimum construction speed: 3-6km/h
Chip size: 3-30mm
Tank volume: 8500L
Spray width: 4200mm
Hopper volume: 14m³
Material: modified bitumen, hot asphalt, rubberized asphalt, and emulsified asphalt
Total weight: 31000kg
Dimension: 11950×2500×3860mm (L×W×H)

Main Features
1. The asphalt sprayer adopts a special chassis which is in conformity with the Euro V standards, featuring strong carrying capability, low oil consumption, and easy operation
2. The patented hydraulic servo technology provides powerful driving force for the system
3. The bitumen spreading machine employs intelligent control system, radar speed tester, monitor, and both automatic and manual operation system. Only one driver is needed to accomplish the distribution job
4. Pipes for carrying bitumen are coated with heat transfer oil to ensure that all of the machine parts run smoothly and don't have to be cleaned
5. The 3 anti-collision foldable sprinkler heads are of high precision and uniformity
6. The imported pump for high-viscosity asphalt meets various working conditions
7. A unique aggregate feeding and distribution system ensures the materials are sprayed uniformly, consecutively and stably
8. Different spray nozzles are controlled independently and can work jointly with each other freely
9. HD camera is equipped at back of the road maintenance vehicle for effective monitor and control
10. The patented bitumen tank with large volume can be heated in a short time and works to maintain the temperature of the materials. Stability of the bitumen is largely improved by the mixing device
