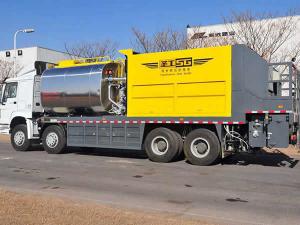

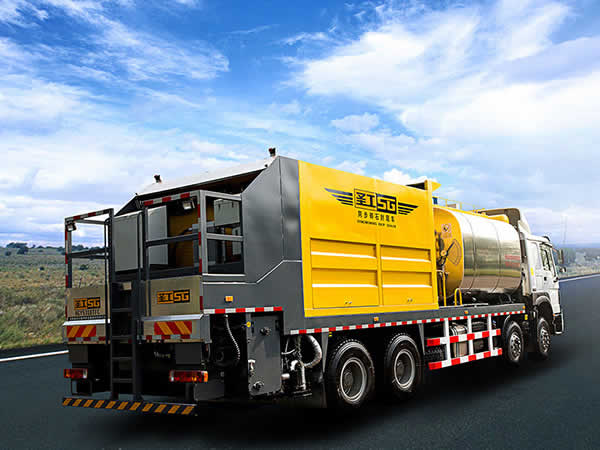

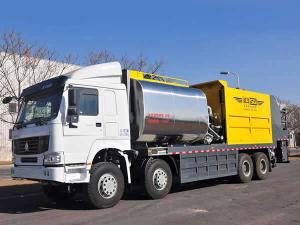

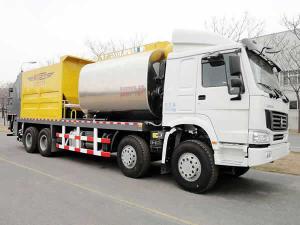

HGY5318TFC Chip Spreader with Asphalt Binder (For Chip Seal Surface Treatment)

Machinery for Road Maintenance, Aggregate Sprayer, Pavement Repairing Equipment, Bituminous Concrete Distributor

HGY5318TFC chip spreader is used for spraying asphalt and aggregate on roads and bridges for maintenance purposes, with asphalt binder available for promoting the adhesion of bituminous concrete. In the spreader's hopper, the mixture is mixed well for the best cohesiveness. Developed basing on HGY5310TLS, this asphalt spraying machine has employed a mixing device to ensure the rubberized asphalt is not easy to get precipitated or segregated. HGY5318TFC bitumen sprayer is developed independently at Gaoyuan. Its operation system has been largely simplified.

Technical Parameters
Model: HGY5318TFC
Chassis model: HOMO ZZ3317N4667E1 from CNHTC
Emission standards: Euro V
Chassis motor power: 276kW/380hp
Auxiliary engine power: 73.6kW/100hp
Asphalt spray volume: 0.2-3.0kg/㎡
Aggregate spray volume: 2-22L/㎡
Asphalt heating speed: 20℃/h
Optimum construction speed: 3-6km/h
Chip size: 3-30mm
Tank volume: 8500L
Spray width: 4200mm
Hopper volume: 12m³
Material: modified bitumen, hot asphalt, rubberized asphalt, and emulsified asphalt
Total weight: 31000kg
Dimension: 11980×2500×3860mm (L×W×H)

Main Features
1. The asphalt sprayer adopts a special chassis which is in conformity with the Euro V standards, featuring strong carrying capability, low oil consumption, and easy operation
2. The patented hydraulic servo technology provides powerful driving force for the system
3. The bitumen spreading machine employs intelligent control system, radar speed tester, monitor, and both automatic and manual operation system. Only one driver is needed to accomplish the distribution job
4. Pipes for carrying bitumen are coated with heat transfer oil to ensure that all of the machine parts run smoothly and don't have to be cleaned
5. The 3 anti-collision foldable sprinkler heads are of high precision and uniformity
6. The imported pump for high-viscosity asphalt meets various working conditions
7. A unique aggregate feeding and distribution system ensures the materials are sprayed uniformly, consecutively and stably
8. Different spray nozzles are controlled independently and can work jointly with each other freely
9. HD camera is equipped at back of the equipment for effective monitor and control
10. The patented bitumen tank with large volume can be heated in a short time and works to maintain the temperature of the materials. Stability of the bitumen is largely improved by the mixing device
