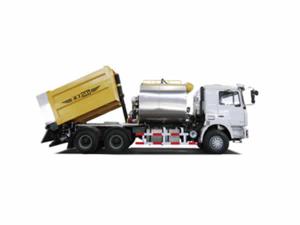

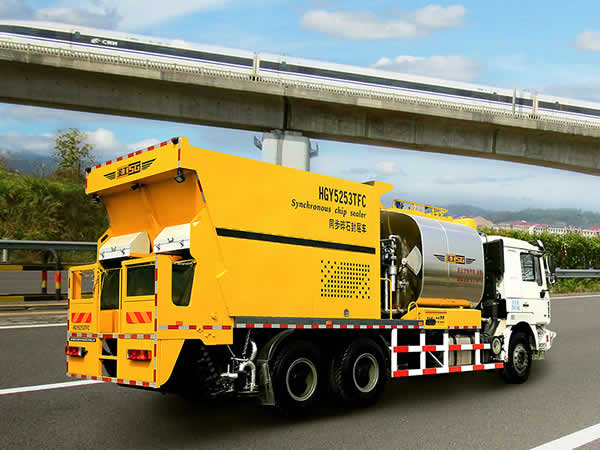

HGY5253TFC Chip Spreader with Asphalt Binder (For Chip Seal Surface Treatment)

Bitumen Mixing Truck, Pavement Construction Machinery, Asphalt Parking Lots Maintenance Solution, Bitumen Emulsion Sprayer

HGY5253TFC chip spraying machine is widely applied in road maintenance and construction projects to mix the asphalt binder and aggregate well and distribute the materials uniformly on roads.

Technical Parameters
Model: HGY5253TFC
Chassis model: Delong SX1250FB from Shaanxi Automobile Group
Emission standards: Euro V
Chassis motor power: 228kW/310hp
Auxiliary engine power: 40.5kW/55hp
Bitumen spray volume: 0.2-3.0kg/㎡
Aggregate spray volume: 2-22L/㎡
Asphalt heating speed: 20℃/h
Optimum construction speed: 3-6km/h
Aggregate size: 3-30mm
Tank volume: 6000L
Spray width: 3800mm
Hopper volume: 10m³
Material: modified bitumen, hot asphalt, rubberized asphalt, and emulsified asphalt
Total weight: 25000kg
Dimension: 10260×2500×3860mm (L×W×H)

Main Features
1. The asphalt sprayer adopts a special chassis which is in conformity with the Euro V standards, featuring strong carrying capability, low oil consumption, and easy operation
2. The patented hydraulic servo technology provides powerful driving force for the system
3. The bitumen spreading machine employs intelligent control system, radar speed tester, monitor, and both automatic and manual operation system. Only one driver is needed to accomplish the distribution job
4. Pipes for carrying bitumen are coated with heat transfer oil to ensure that all of the machine parts run smoothly and don't have to be cleaned
5. The 3 anti-collision foldable sprinkler heads are of high precision and uniformity
6. The imported pump for high-viscosity asphalt meets various working conditions
7. A unique aggregate feeding and distribution system ensures the materials are sprayed uniformly, consecutively and stably
8. Different spray nozzles are controlled independently and can work jointly with each other freely
9. HD camera is equipped at back of the equipment for effective monitor and control
10. The patented bitumen tank with large volume can be heated in a short time and works to maintain the temperature of the materials. Stability of the bitumen is largely improved by the mixing device
