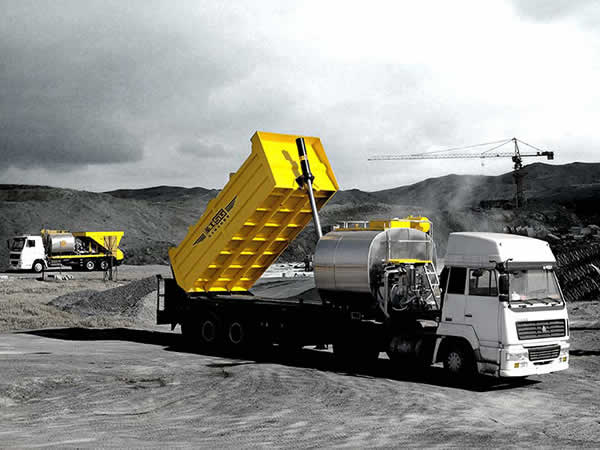

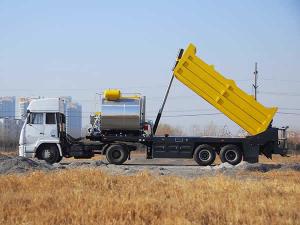

GYKT0616A Chip Spreader with Asphalt Binder (For Chip Seal Surface Treatment)

Asphalt Concrete Mixing Truck, Road Surfacing Machinery, Asphalt Pavement Restoration Solution, Highway Engineering Equipment

GYKT0616A asphalt concrete sprayer employs an independent motor to supply power for the hydraulic system, and sprays asphalt binder and aggregate uniformly on road. In the truck's hopper, the materials are sent to the sprayer under their gravity, and then transported to the spray nozzle through pipes. The distribution job is done automatically under computer control. GYKT0616A is a patented product of Gaoyuan. Patent NO.: ZL200520078495.6

Technical Parameters
Spray width: 4000mm
Asphalt heating device: imported diesel burner
Material size: S5~S30mm
Truck weight: 21.7t
Hopper volume: 16m³
Tank volume: 6m³
Asphalt spray volume: 0.5~3.0kg/㎡
Material: modified bitumen, hot asphalt, rubberized asphalt, and emulsified asphalt, diluted bitumen
Dimension: 13700×2500×4000mm

Main Features
1. Sprayer truck: Steyr ZZ4186S3516C from CNHTC; chassis: ND4187A38J (optional) from Beiben Truck; the vehicle features powerful carrying capacity, low oil consumption, and easy operation
2. The machine helps a lot in improving working efficiency and reducing construction cost
3. The equipment works stably and sprays the material uniformly. Spray width can be adjusted freely
4. With an effective insulation approach, temperature of the tank will drop no more than 2℃ for each hour (ambient temperature: 15℃). The bitumen tank is corrosion resistant and highly durable
5. The highly consistent spray nozzles are designed to spray the materials uniformly
6. The bitumen distributor truck is rather user-friendly and can be operated remotely
7. Through several times of modification, our chip sprayer truck features reliable performance and convenient operation
