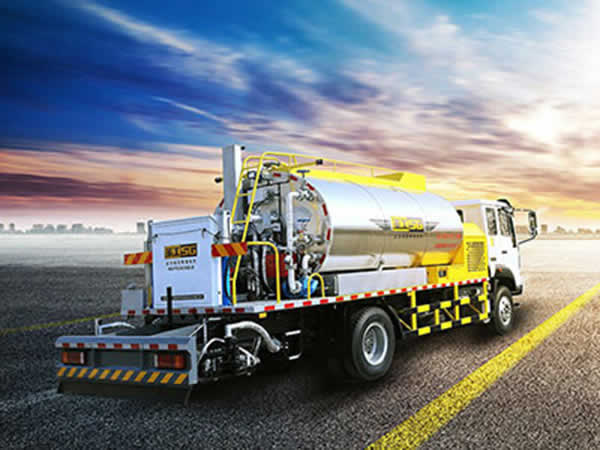

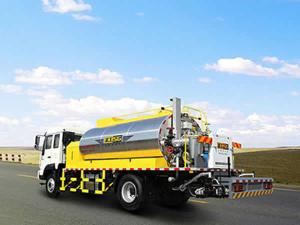

Brief Introduction of the Semi Automatic Asphalt Distributor
Our semi-automatic asphalt distributors are expertly designed using our years of experience in developing road construction equipment. These asphalt sprayers are economical, practical and easy to use. Asphalt trucks like this are designed for professional road construction applications for spraying emulsified, diluted, hot asphalts and various binders.
The semi-automatic asphalt distributor uses a heat transfer fluid (HTF) system to maintain a stable temperature in the asphalt pipelines in order keep the asphalt in a liquid state. The system uses a specified formula that involves the vehicle speed and heating system rotation to control and guarantee a uniform spray volume.
This paving equipment applies upper and lower seal layers, prime layers, asphalt surfacing, asphalt penetration surface and fog seal layers. These asphalt trucks are also suitable for simply transporting liquid asphalt and other heavy oils.
4m³ HGY5080GLQ Asphalt DistributorMain technical parameters
| Product Model | HGY5080GLQ |
| Chassis model | HFC1080K3T |
| Spray width | 200-4000mm |
| Spray volume | 0.3-2.0 kg/m2 |
| Asphalt tank volume | 4000L |
| Asphalt heating mode | Imported diesel oil burner (calorific value 10×104kCal/h) |
| Spray media | hot (modified) asphalt, diluted asphalt, emulsified asphalt, etc. |
| Overall dimensions | L×W×H=6340 × 2100 × 2540 (mm) |
Main technical parameters
| Product Model | HGY5122GLQ |
| Chassis model | ZZ1124G4715C1 |
| Nozzle number | 36 |
| Spray width | 200-4500mm |
| Spray volume | 0.5-2.0 kg/m2 |
| Asphalt tank volume | 6500L |
| Asphalt heating mode | Imported diesel oil burner (calorific value 10×104kCal/h) |
| Spray media | hot (modified) asphalt, cutback asphalt, emulsified asphalt, etc. |
| Auxiliary power/rotation | 26kW/2350r/min |
| Overall dimensions | L×W×H=8700 × 2496 × 3350 (mm) |
Performance Characteristics of the Semi Automatic Asphalt Distributor
1. JAC Junling chassis, high performance, low emission, reliable and easy to use.
2. Each nozzle of the semi-automatic asphalt distributor goes through an advanced processing operation to realize accurate and consistent asphalt spraying.
3. Imported heat-resistant seal elements guarantee the reliability of the dynamic seals of each system of the bitumen sprayer.
4. The heating system uses an imported burner with automatic ignition and temperature control functions. The heater is fast acting, shortens auxiliary working hours and guarantees proper spray temperatures.
5. The asphalt paving machine has a high-viscosity pump that is used to spray the asphalt as well as keep it flowing through the pipeline system, preventing it from solidifying.
6. The paving equipment is equipped with a gravity emptying device to evacuate leftover asphalt without using the asphalt pump.
7. The semi-automatic asphalt distributor is fitted with ladders and handrails to allow the user easy access to all parts for operation and maintenance.
8. The asphalt spray bar is constructed with a three-section foldable structure. It can move up, down, left and right to expand the spray area and to avoid obstacles.
9. A manual lance is installed on the paving machine to allow the user to spray where the machine's nozzles cannot reach.
10. The asphalt tank is equipped with an internal deposit discharge grove and a level indicator.
