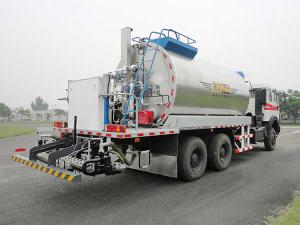

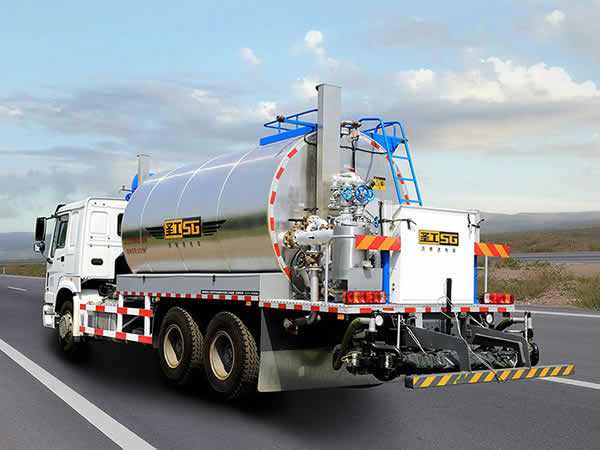

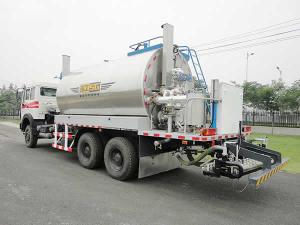

HGY5256GLQ is a kind of road maintenance machinery especially designed for rubberized asphalt distribution, which represents a new technical breakthrough in domestic market. For this asphalt sprayer, we have introduced a powerful mixing device in the tank, ensuring that the asphalt rubber is not easy to get precipitated or segregated. The rapid heating device makes the time for an extra preparedness before the construction unnecessary and the temperature of the bitumen well maintained. Inside the asphalt pipe, we have set a layer of heat transfer oil, which is heated cyclically to make sure the mixture in the pipe moves smoothly. The specially-designed spraying system is capable of distributing the asphalt uniformly, with the volume adjusted accurately as the vehicle speed changes.
Technical Parameters
Model: HGY5256GLQ
Chassis model: M3000/SX1250MB4 from Shaanxi Automobile Group
Spray volume: 0.2~3.0kg/㎡
Spray width: 200~4500mm
Tank volume: 13000L
Asphalt heating device: imported diesel burner
Material: modified bitumen, hot asphalt, rubberized asphalt, and emulsified asphalt
Spray accuracy: ±1.5%
Total weight: 25000kg
Dimension: 10735×2496×3820mm (L×W×H)
HGY5256GLQ bitumen spraying machine is developed by learning from the advanced technology of similar products both at home and abroad, and upgrading the machinery into a well-performed, user-friendly one. With uniform bitumen distribution and stable industrial computer control, this equipment represents the leading technology in asphalt distribution industry across the world. On top of that, we have been working to improve our distributors to make them applicable in various conditions.
HGY5256GLQ is a substitute for the existing asphalt distributor trucks for it is able to deal with a complete line of rubberized asphalt, emulsified bitumen, diluted asphalt, hot asphalt, and rubberized asphalt.
Why Choose HGY5256GLQ Rubberized Bitumen Sprayer
1. The bitumen distributor helps a lot in improving working efficiency and cutting on labor cost
2. It sprays bitumen stably and uniformly, with the spray width adjustable
3. With an insulation structure, temperature of the tank drops 12℃ for each 8 hours (moderate ambient temperature). The tank is corrosion-resistant and highly durable
4. Nozzle of the machine works at high accuracy
5. The equipment is user-friendly and can be operated remotely
6. Through several times of modification, our bitumen distributor truck features reliable performance and convenient operation
