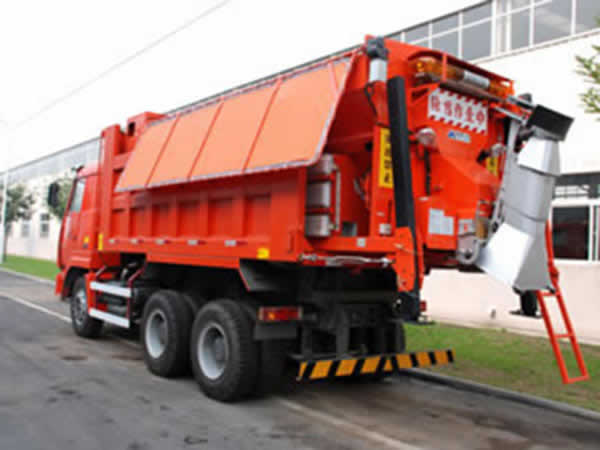

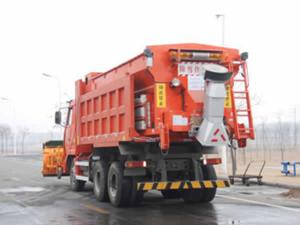

Gaoyuan sand spreader is a machine that helps melt snow by spreading the snow-melting agents like sand, salt and calcium chloride solutions, thus keeping traffic flowing and the roads clear. It is usually applied to the snow removal work of high-level roads, urban roads, squares and roads in airports and scenery spots.
There are three working modes of our snow-melting agent spreader
1. Spreading the pre-wetted solution of liquid snow-melting agents and solid snow-melting agents or wear-proof materials;
2. Spreading snow-melting agents like fossil salt;
3. Spreading wear-proof materials like sands.
Product model | YDSP1510L |
Auxiliary engine power | 21KW |
Storage hopper volume | 10m3 |
Solution tank volume | 2800L |
Spreading width | 2-10m(2m,4m,6m,8m,10m) |
Spreading volume | snow-melting agent, 5~40g/ m2; sand, 40~250 g/ m2 |
Max. working speed | 60 km/h |
Dimensions (mm) | 6260×2135×1932 |

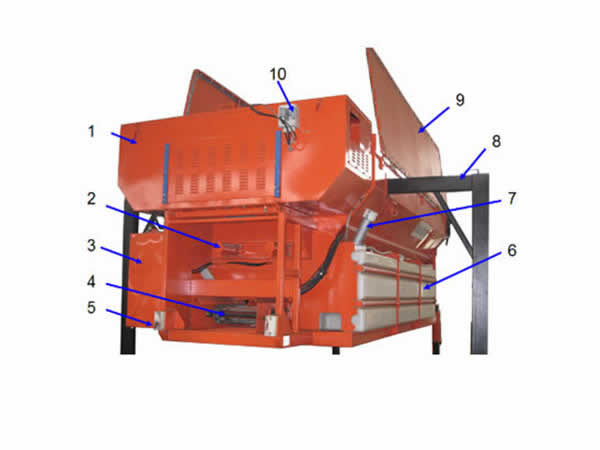

External View
No. | Parts | Remarks |
1 | Power supply unit | Engine, hydraulic system, fuel tank, and control center |
2 | Anti-bridging device | |
3 | Hydraulic oil tank | |
4 | Chain conveyor | Unlimited orbit type |
5 | Bumper guard | |
6 | Calcium chloride solution tank | |
7 | Solution filling port | One for each side |
8 | Installing and dismantling holder | |
9 | Top cover | Both two sides |
10 | Adapter junction box | |
11 | Warning lights | |
12 | Motor for top covers | |
13 | Feed gate and its cylinder | |
14 | Working lights | |
15 | Safety hook | |
16 | Driving device for chain conveyor | |
17 | Spreader | |
18 | Solution discharging port | |
19 | Inspection ladder | Foldable |
20 | Feeding starvation sensor | |
21 | Solution pump | |
22 | Materials hopper | |
23 | Lifting lug | Fastened to the truck |
24 | Safety screen |
