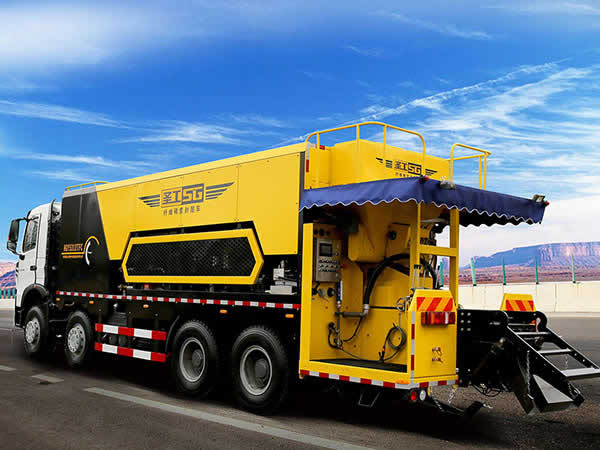

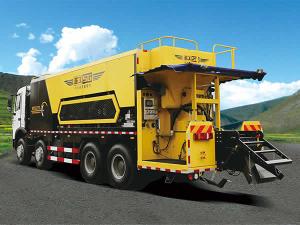

HGY5312TFCSF slurry paver is designed for improving road resistance, repairing potholes, and eliminating rutting for road maintenance and rehabilitation purposes. It has been widely applied in diluted slurry, modified asphalt and micro-surfacing treatment.
Technical Parameters
Model: HGY5312TFCSF
Emission standards: Euro V
Chassis model: Delong X3000/SX1310XB6 from Shaanxi Automobile Group
Chassis motor power: 276kW/375hp
Auxiliary engine power: 119kW/160hp
Fiber hopper volume: 0.2m³
Fiber feeding speed: ≤3.5kg/min
Mixer discharging speed: ≤3.5t/min
Paver box width: 2.5-4.3m
Aggregate hopper volume: 12m³
Slurry tank volume: 4m³
Water tank volume: 4m³
Additive tank volume: 400L
Filler tank volume: 2×0.5m³
Min driving speed: 1km/h
Total weight: 31000kg
Dimension: 11920×2496×3460mm
Main Features
1. The chassis features low oil consumption, little emission, and strong driving force. The slurry seal truck comes with both high and low gear. The high gear is designed for driving and the low one is used for construction
2. The large-power auxiliary engine is from Cummins
3. 6 independent hydraulic power supply systems are available for each system, which doesn't interfere with each other
4. With centralized control, all of the operations are controlled by a platform. Users can start or stop the asphalt paver simply with one button
5. For this slurry paving equipment, an advanced speed sensing device joins with the control system for precise volume and ratio control of different materials
6. A patented fiber supply system is introduced to cut the fiber uniformly and accurately
7. Aggregate is transported smoothly and stably with an effective transmission system comprised of hopper, vibration absorber and belt conveyor
8. Construction quality is guaranteed by an effective alarming device which alerts when there is lack of material
9. An advanced mixing device with durable tungsten carbide blade ensures good mixture quality. Angle of where the materials are discharged is adjustable according to road slope
10. The paver box adopting patented technology is equipped with a double-row screw propeller to mix the slurry well and prevent them from segregation. The automatic retractable structure meets different construction needs
11. High-pressure cleaning and water supply devices are available for maintenance of the paving equipment and for special construction needs
12. The control system employs modular design, special controller for engineering use, and CAN bus system. With a distributed bus control system, the control elements are driven directly by the controller, allowing for much improved system stability and consistency.
