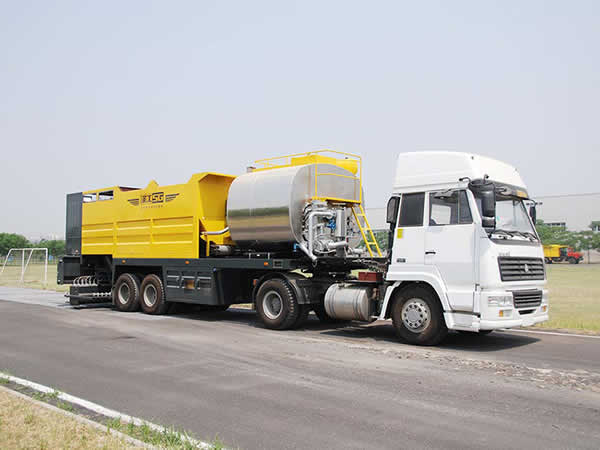

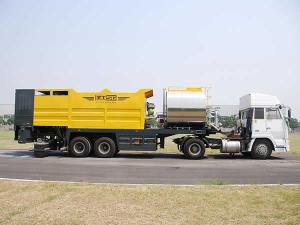

GYXKT0812 Chip Spreader with Fibered Asphalt Emulsion Binder

Pavement Resurfacing Machinery, Equipment for Bitumen Restoration, Chip Sealing Distributor, Machinery for Pavement Surface Treatment

GYXKT0812 chip spraying machine is widely applied in road maintenance and construction projects to mix the asphalt binder and aggregate well and distribute the materials uniformly on roads. Gaoyuan has independent intellectual property right for GYXKT0812, a model developed from KT0616B and rivals the previous products for its double-rack fiber distribution structure.

Technical Parameters
Model: GYXKT0812
Truck head: we buy it from other suppliers or clients purchase by themselves
Auxiliary engine power: 70kw
Spray width: 3500mm
Asphalt spray volume: 0.5~3.0kg/m²
Aggravate size: 3~25mm
Tank volume: 8m³
Hopper volume: 12m³
Asphalt heating device: imported diesel burner (calorific value: 2×10×10⁴kcal/h)
Material: modified bitumen, hot asphalt, rubberized asphalt, and emulsified asphalt
Fiber length: 30mm, 60mm, 120mm
Fiber spray volume: 30~90g/m²
Weight (full load): 50000kg
Dimension: 12150×2500×4000mm (L×W×H)

Main Features
1. The ability of spraying the materials on road without lifting the hopper makes it possible for the machine to work in culvert, under bridge and on road corners
2. Controlled by electrical system, GYXKT0812 asphalt spreader is capable of accurately calculating how much asphalt is required exactly
3. The machine uses double-spiral distributor to transport the aggregate to 3500mm hopper, where the material falls down under gravity and friction.
4. The asphalt spray truck helps a lot in improving working efficiency and reducing construction cost
5. Width of spraying asphalt, fiber and aggregate can be adjusted freely
6. An effective insulation approach ensures that temperature of the tank will drop no more than 20℃ for each 8 hours. The bitumen tank is corrosion resistant and highly durable
7. Various asphalt materials are acceptable, with the aggregate size ranging from 3mm to 24mm
8. The nozzle rack is foldable and height-adjustable. The fiber distribution device can swing left and right
9. The bitumen distributor truck is rather user-friendly and can be operated remotely
10. An electrical control system joins with the constant-pressure device of the hydraulic system to ensure the machine can spray while running
11. Through several times of modification, our chip sprayer features reliable performance and convenient operation
