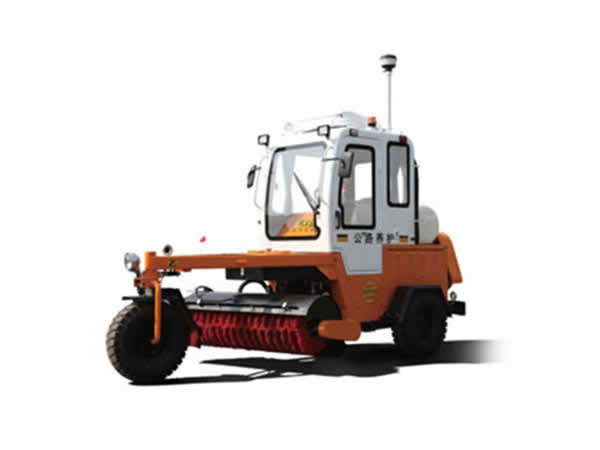

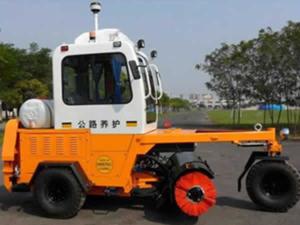

The GYQS1500E road sweeper is mainly applied to get rid of the solid foreign matters such as the bleeding cement and soil clod on the pavement path of road and bridge, and brush the dust away, as well as clean adhesive layers. Its nylon brush is alternative for routine road cleaning.Technical Parameters
|Overall power||26 KW/2000 rpm|
|Sweeping width||1700 mm|
|Brush dia||480 mm|
|Brush rotation speed||300 rpm|
|Brush carrier swing angel||±15°|
|Blower rotation speed||200 rpm|
|Moving speed||0-15 km/h|
|Water tank volume||125 L|
|Air conditioner||cool only|
|Fuel consumption||4 L/10000m2|
Brushes made of various materials are interchangeable for different working conditions.
Water spraying and dusting device is installed in the front of brush housing.
1. The streamlined cabin of the road sweeper owns strong and stable structure, good sealing and sound insulation performance, equipped with integrated overhead air conditioner, makes a comfortable and safe operation environment.
2. This machine is regular tricycle structure of automated ground drive, which concentrates mechanical unit, electrical unit and hydraulic unit all in one, with features of novel, brief, light and flexible structure.
3. Key parts of hydraulic unit are all from the famous manufacturer in the world, such as complete hydraulic transmission, brushing and traveling of infinite variable speed.
4. Hydraulic swing device can swing no more than 15 degrees to left and right and shoot out the collected matters directionally.
5. Optional side brush is easy to be installed and detached, for sweeping the dead corners formed by curbstones and road barriers.
6. Hydraulic lifting device and adjustor will get the brush holder within the upper and lower limits, and freely adjust the sweeping force.
7. Hydraulic steering system is flexible and convenient.
8. The air inlet of engine air filtering system is highly mounted with pre-filter, and the dry and wet composite desert air filter with two-stage filtration keeps the engine longer service life.
9. Steel brush of the road sweeper is made by special processing technology, which will effectively brush the impurities on the pavement powerfully, with advantages of high level of mechanization and good brushing performance.
10. Dash panel with brush pushing-down scale indicator on the right side can show the brush pushing-down scale value and contact face area with ground for a better work of the brush.
11. Strong wind produced by blower system will blow the impurities and dust away directionally to improve the pavement cleanness and effectively improve working efficiency, which provide reliable safeguards for the next construction procedure, especially for the construction technology which requires high viscosity.
12. The electrical control system of the road sweeper applies components meeting the standard of automobile industry; electrical master control box with optimized circuit protects the electrical components if any faults and makes itself easy to repair and maintain.
